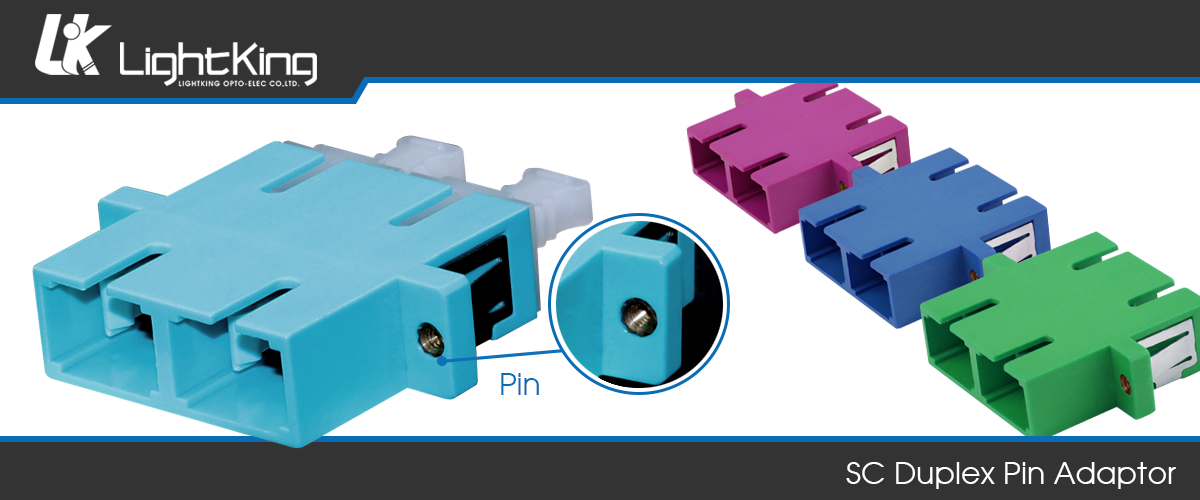

SC Duplex Pin Adaptor

Features
● Low insertion loss and back reflection loss.
● High Precision of Mechanical Dimensions.
● Compliant with Telcordia GR-326-Core, IEC, TIA.
● RoHS compliant.
● 100% Optic test.

Technical Specification
● Compliance Telcordia GR-326-CORE.
● Compliance IEC 60874-14 (1993) sectional specification.
● The Reliability and Environment test is based on EIA/TIA455 Standard.

Adaptor Type Mode Core Housing Color Dust Cap Tpye Dust Cap Color Housing Material
Flange Singlemode Simplex Blue Handle Transparent Plastic
Flange with M2 Thread Multimode Duplex Green Standard (T shape) Semi-Transparent Metal
No Flange APC Quad Beige   Blue
Outer Shutter     Aqua   Green
Inner Shutter     Magenta   Beige
One body type         Black
          Aqua
          Magenta
