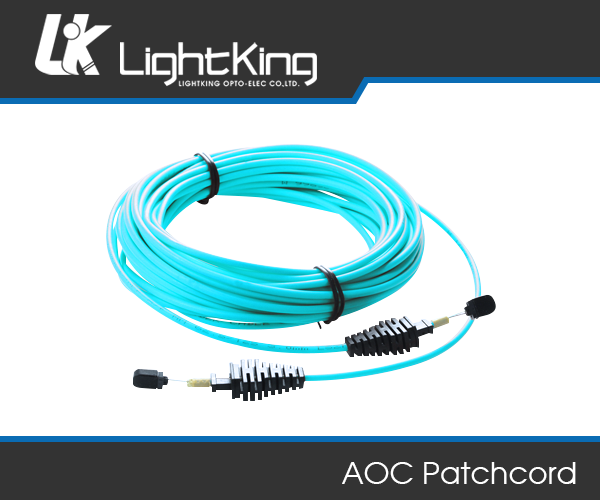

AOC Patchcord

Features
● Compliant to InfiniBand, 10Gbps QDR, 5Gbps DDR, 2.5 Gbps SDR
● Aggregate bandwidth of > 40Gbps
● MTP/MPO optical connector
● Capable of over 100m transmission on high bandwidth 50um multi-mode round fiber
● RoHS compliant

Applications
● 40Gb/sQSFP
● Data centers
● Metro networks
● Switches and Routers
● Infiniband 4x SDR, DDR, QDR 10G Ethernet

Specifications
Item  SM  MM
Insertion loss ≤0.30dB /≤0.75 dB ≤0.30dB /≤0.75 dB
Return loss ＞65dB ＞45dB
Fiber diameter 9/125um 50/125um、62.5/125um、OM3、OM4
Insert- pull test  500times＜0.5 dB
Operation temperature 0℃～+70℃
