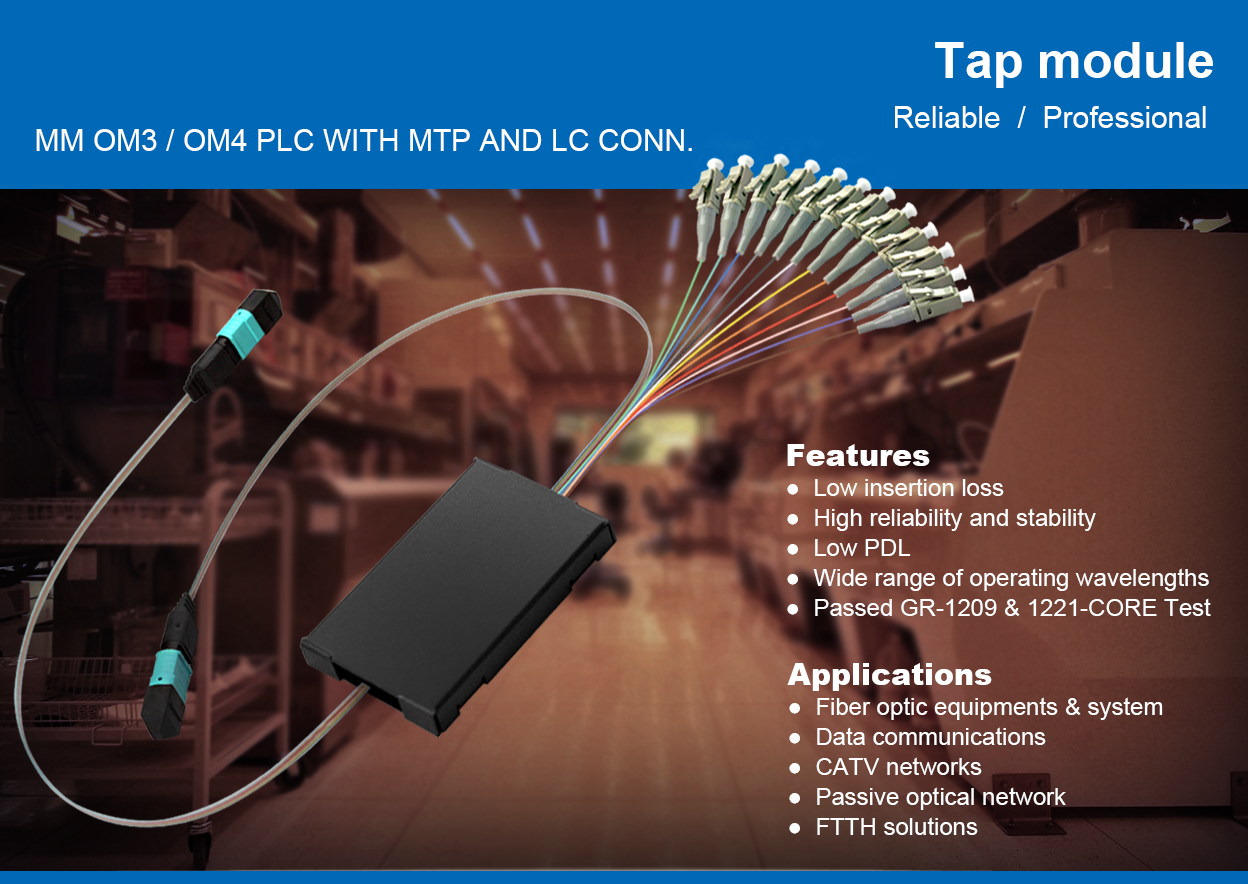

Features: Applications:
1. Low insertion loss 1. Fiber optic equipments & system
2. High reliability and stability  2. Data communications
3. Low PDL 3. CATV networks
4. Wide range of operating wavelengths 4. Passive optical network
5. Passed GR-1209 & 1221-CORE Test 5. FTTH solutions



No Parameters Unit Specification
1 Operating Wavelength nm 850 / 1310
2 Coupling Ratio % 50 / 50
3 Insertion Loss dB ≦ 4.1
4 Return Loss dB ≧ 20
5 Fiber Type um OM4 50/125
6 Pigtail Length m As customer’s required
7 Pigtail Type (For LC) ------ 0.9mm tube
8 Pigtail Type (For MTP) ------ 3.0mm tube
9 Connector Type ------ MM MTP 12F Male Elite 3.0mm
10 ------ MM LC/PC Duplex 0.9mm
11 RoHS Required ------ Yes
12 Package Material ------ Metal
13 Package Dimension (L x W x H) mm 80 x 50 x 10mm
14 Operating Temperature ℃ -20°C～+75°C
15 Storage Temperature ℃ -40°C～+85°C
16 Operating Humidity %RH 95
17 Storage Humidity %RH 95
