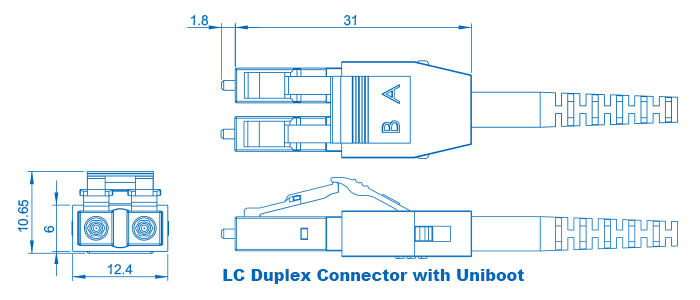

Dimension
.png)
| ITEM | SPECIFICATION | ||
| SM Premium / Standard | MM Premium / Standard | APC Premium / Standard | |
| ROHS Compliance/Meet UL & Telecordia Testing Requirements | |||

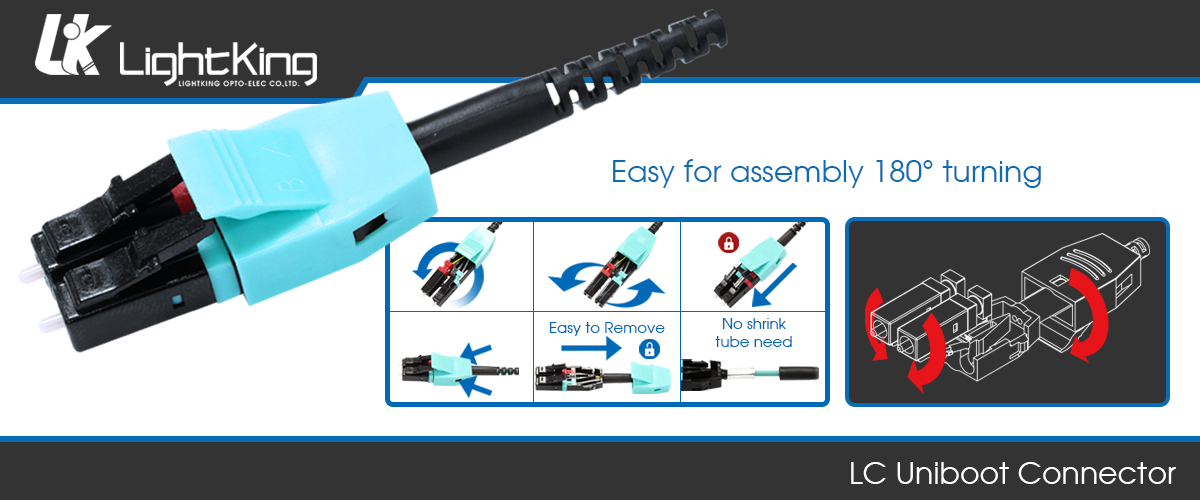

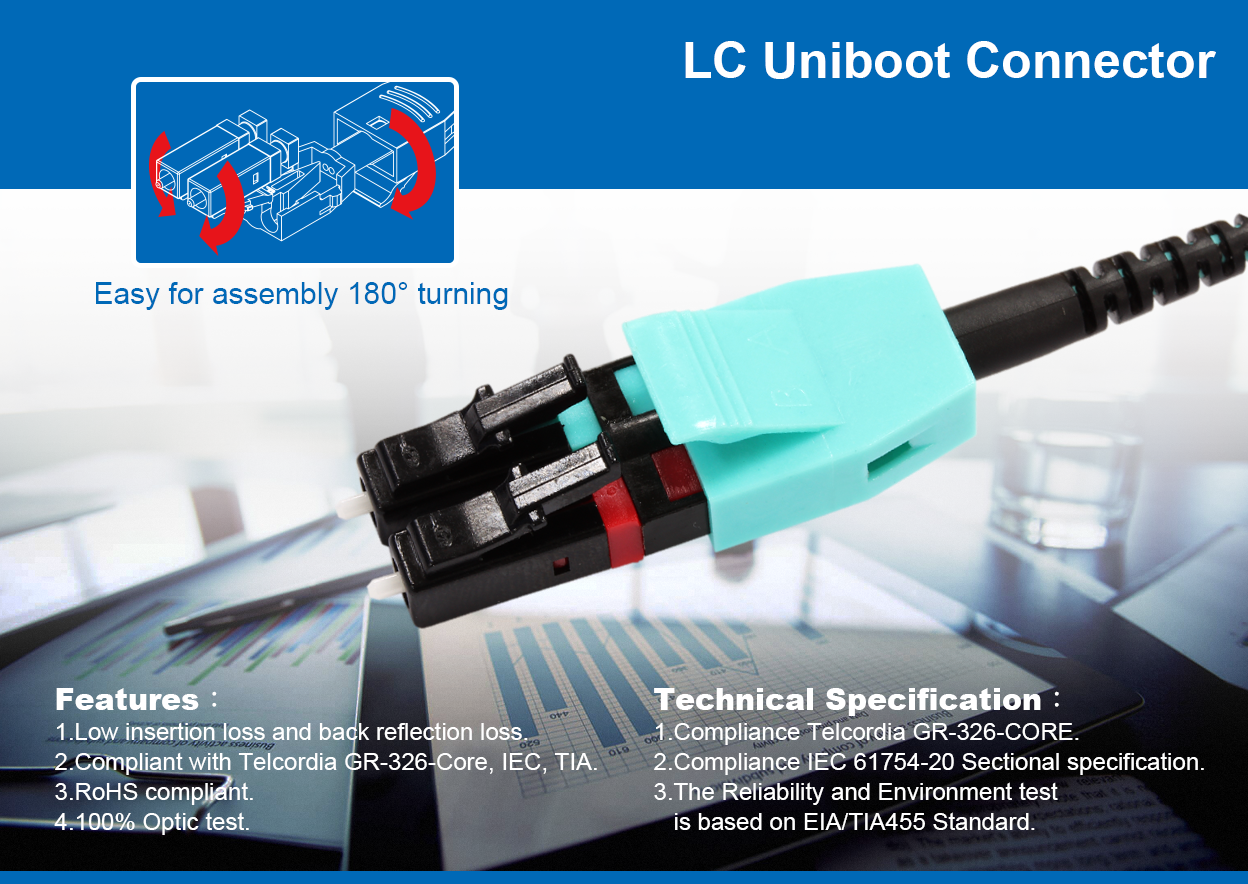

| DESCRIPTION | Versatile RJ45 latching mechanism design. | ||
| One piece type or multi-piece type are available. | |||
| HOUSING MATERIAL | Plastic with UL approved | ||
| I.L | 0.2 dB/0.3 dB Max | 0.2 dB/0.3 dB Max | 0.25 dB/0.3 dB Max |
| R.L | PC>50dB,UPC>55dB | --------- | APC>65dB |
| FERRULE MATERIAL | Ceramic Ferrule | ||
| FERRULE HOLE SIZE | 125.5um | 126um | 125.5um |
| KEVLAR RETENTION | Crimp ring | ||
| OPERATING TEMPERATURE(°C) | -20°C ~ +75°C | ||
| IMPACT TEST ( GR-326 4.4.3.7 ) | IL≤0.3dB ; Change≤0.2dB | ||
| VIBRATION TEST ( GR-326 4.4.3.1 ) | IL≤0.3dB ; Change≤0.2dB | ||
| Transmission with .Applied Tensile Load(GR-3264.4.3.5) | IL≤0.3dB ; Change≤0.2dB | ||
