ITEM SPECIFICATION
SM  Premium / Standard MM Premium / Standard APC Premium / Standard
ROHS Compliance/Meet UL & Telecordia Testing Requirements

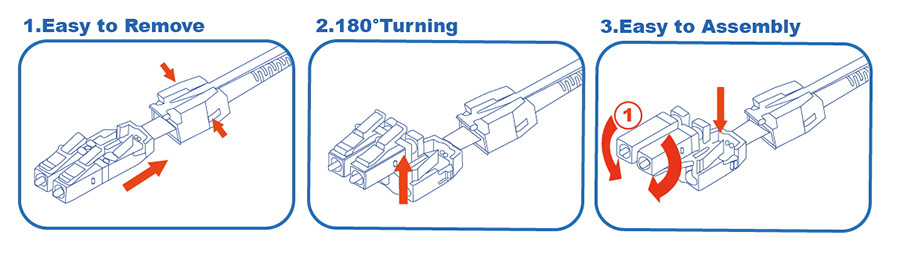

DESCRIPTION  Versatile RJ45 latching mechanism design.
One piece type or multi-piece type are available.
HOUSING MATERIAL Plastic with UL approved
I.L 0.2 dB/0.3 dB Max 0.2 dB/0.3 dB Max 0.25 dB/0.3 dB Max
R.L PC>50dB,UPC>55dB -------- APC>65dB
FERRULE MATERIAL Ceramic Ferrule
FERRULE HOLE SIZE 125.5um 126um 125.5um
KEVLAR RETENTION Crimp ring
OPERATING TEMPERATURE -20°C ~ +75°C
IMPACT  TEST ( GR-326   4.4.3.7 ) IL≤0.3dB ;  Change≤0.2dB
VIBRATION TEST ( GR-326  4.4.3.1 ) IL≤0.3dB ;  Change≤0.2dB
Transmission with .Applied Tensile Load(GR-3264.4.3.5)  IL≤0.3dB ;  Change≤0.2dB
