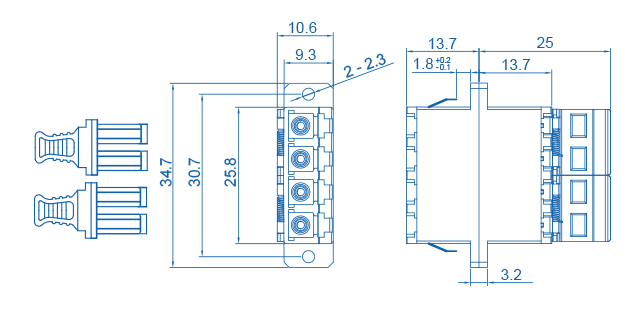

Drawings

ITEM SPECIFICATION
SM MM APC
ROHS Compliance/Meet UL & Velecordia Testing Requirements
MOUNTING STYLE Screw mount flange type or snap mount style
I.L 0.2 dB Max., 0.1dB Typical
RETENTION FORCE 100-300 grams
DURABILITY <0.2 dB max increase after 500 mating
OPERATING TEMPERATURE(°C) -20°C ~ +75°C
IMPACT TEST
( GR-326 4.4.3.7 )		 IL≤0.2dB ; Change≤0.15dB
VIBRATION TEST
( GR-326 4.4.3.1 )		 IL≤0.2dB ; Change≤0.15dB
THERMAL AGING TEST
( GR-326 4.4.2.1 )		 IL≤0.2dB ; Change≤0.15dB



PROPERTY
TYPE CORE HOUSING COLOR DUST CAP COLOR SLEEVE TYPE HOUSING MATERIAL
Flange Simplex Blue White ZrO2 Plastic
Pin Flange Duplex Green Transparent Phbr Metal
NO Flange Quad Beige
Shutter   Black
    Aqua
    Magenta
Note : Custom colors available upon request
