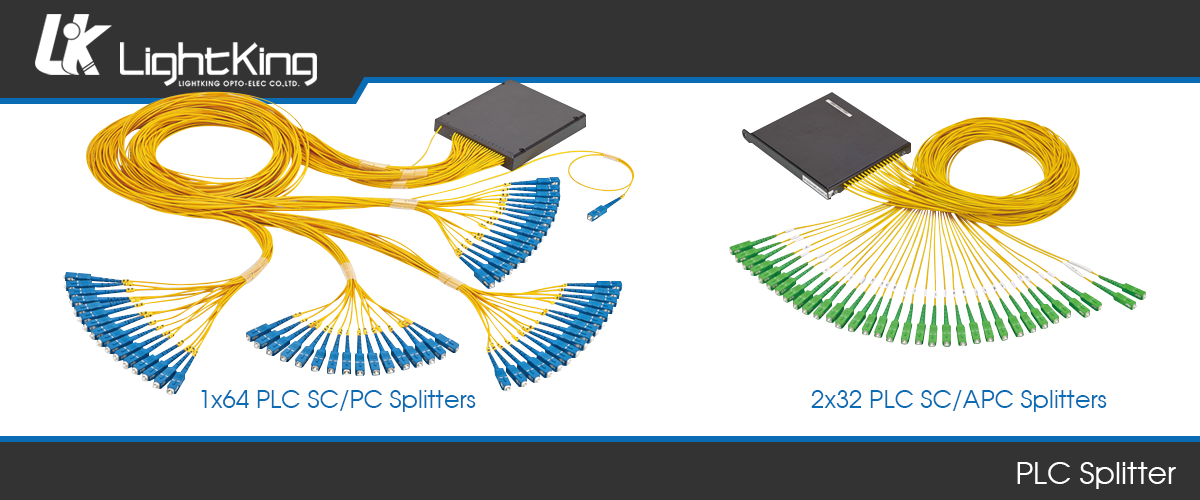

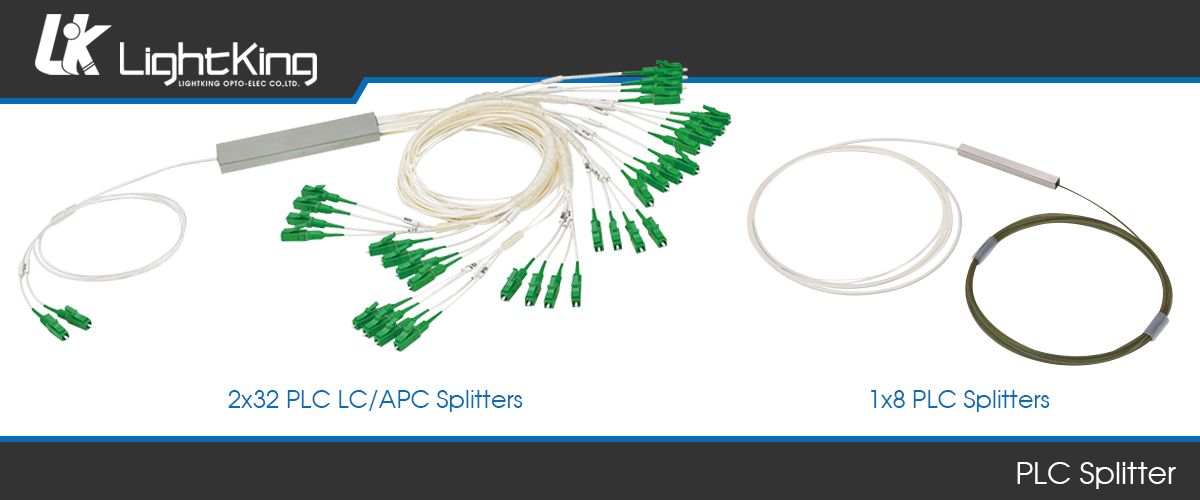

Features
● Low Insertion Loss
● Low PDL
● High Reliability and stability
● Wide range of operating wavelengths
● Passed GR-1209 & 1221-CORE Test
Application
● Fiber optic equipments & systems
● CATV networks
● Data communications
● Passive optical network
| Premium Grade | |||||||||||
| Parameter | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 |
| Insert Loss(dB) | 3.7 | 7 | 10.3 | 13.4 | 16.8 | 20 | 4 | 7.5 | 10.8 | 14 | 17.3 |
| Uniformity(dB) | 0.5 | 0.5 | 0.8 | 1 | 1.5 | 1.8 | 0.8 | 1 | 1.4 | 1.5 | 2 |
| PDL(dB) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 |
| Standard Grade | |||||||||||
| Parameter(dB) | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 |
| Insert Loss(dB) | 4 | 7.4 | 10.8 | 13.8 | 17.2 | 20.4 | 4.5 | 7.9 | 11.3 | 14.6 | 17.8 |
| Uniformity(dB) | 0.6 | 0.8 | 1 | 1.3 | 1.5 | 1.8 | 1.2 | 1.4 | 1.5 | 1.8 | 2.4 |
| PDL(dB) | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 |
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Package Dimension(LxWxH)(mm) | Customized(Cassette-Type,19"Rack-Type,LGX-Type...) | ||||||||||
| Return Loss(dB) | ≥50 | ||||||||||
| Directivity(dB) | ≥55 | ||||||||||
| Fiber Type | G.657A | ||||||||||
| Fiber Length | Customized | ||||||||||
| Connector Type | Customized | ||||||||||
| Operating Temperature(°C) | -40°C ~ +85°C | ||||||||||
| Storage Temperature(°C) | -40°C ~ +85°C | ||||||||||
Note:● Without Connector Loss
● the operating wavelength is guaranteed by design.The test results provide data for 1310and 1550nm.
