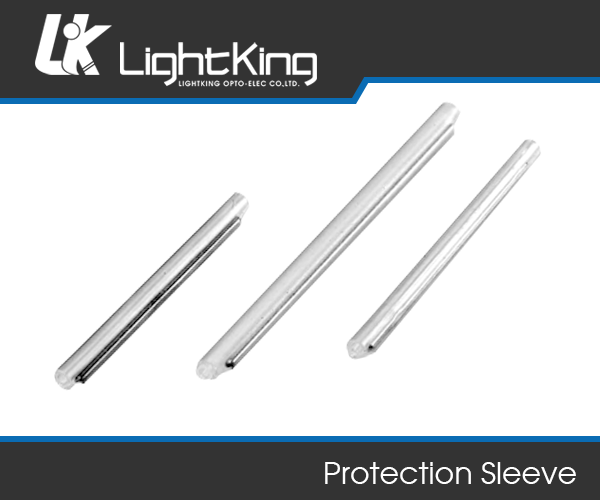

Protection Sleeve

Description
The heat shrinkable protection sleeve shall be heatshrinkable.
● The heatshrinkable material shall conforms to MIL-1-23053/5 class 1 and 3  specification or better.
● The heat shrinkable protection sleeve shall be compatibled with JIS C2132 requirement
● The colour of the heat shrinkable protection sleeves shall preferably be clear for easy inspection.

Features
● Outer sleeve made of polyolefin.
● Inner sleeve ethylene vinyl acetate provide.
● Moisture resistant barrier after shrinkage.
● Tension member stainless steel rod.
● Min. shrink  temperature : 90°C (194°F)

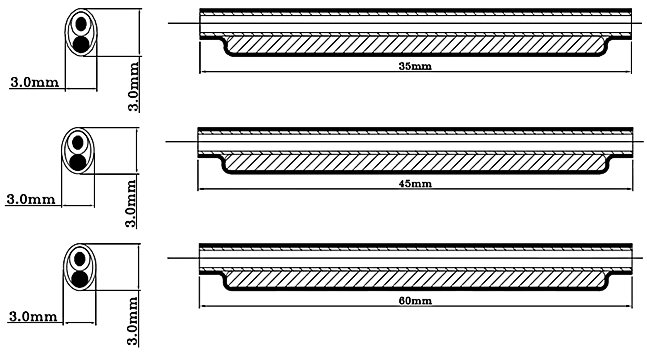

SPECIFICATIONS OUTER TUBE INNER TUBE STRENGTH MEMBER
Material: POLYOLEFIN EVA SUS303
Trade Size: 3.0 x 0.2mm 1.5 x 0.4mm 1.5 x 56mm
Inside DIA 3.6 ±0.3mm 1.5 ±0.1mm ------
AS Supplied. DxT
Nom. Wall Thickness -AS Supplied 0.2mm 0.4 ±0.03mm ------
Max. Inside DIA 1.8mm ------ ------
After Recovered
Min. Wall Thickness 0.4 ±0.1mm ------ ------
Color Clear Clear ------
Operation Temp. (°C) -55°C ~ +100 °C -55°C ~ +90 °C ------
Longitudinal Shrinkage(%) 15% MAX. ------ ------
Tensile Strength 1.00KG/mm2(MIN)   0.8KG/mm2(MIN) ------
Ultimate Elongation 200% MIN. 200% MIN. ------
Volume Resistivity 1014 ohm-CM(MIN) 1014 ohm-CM(MIN) ------
Dielectric Voltage Withstand NO Breakdown AC ------ ------
2.5KV x 1Minute ------ ------
Water Absorption 0.3% MIN. 0.3% MIN. ------
Chamferred and Deburred two ends N/A N/A YES
Passivation N/A N/A YES
