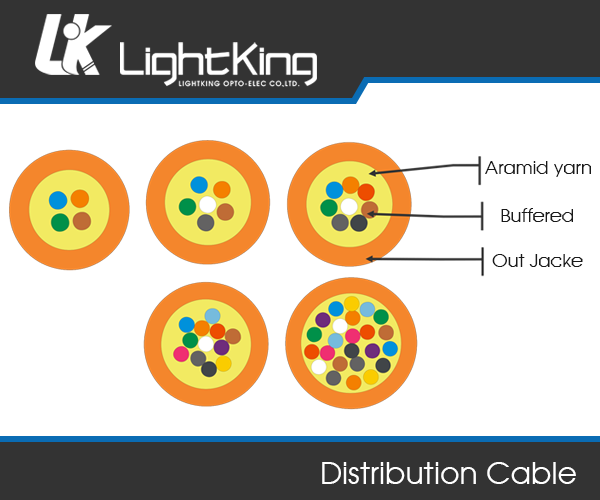

Distribution Cable

Properties
1. Good mechanical and environmental characteristics.
2. Flame retardant characteristics meet the requirements of relevant standards.
3. The mechanical characteristics of jacket meet the requirements of relevant standards.
4. Soft, flexible, easy to lay and splice, and with big capacity data transmission.
5. Meet various requirements of market and clients.
6. Fiber count is 4-48 cores.
7. Color of out jacket varies according to the type of fibers inside. can also be other color upon request.
8. LSZH material for out jacket, can also be other materials upon request.

Application
1. Used in indoor cabling.
2. Used as access building cable.
3. Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames.
4. Used in pigtails and patch cords.

Application:
Fiber account OD(㎜) Nominal Weight(㎏/㎞) Max.Tension (N) Max. Crushing Resistance (N/100 )
Short-term Long-term Short-term Long-term
4 4.8 ±0.2 18 270 90 1000 300
6 5.2 ±0.2 23 330 110 1000 300
8 6.2 ±0.2 29 480 160 1000 300
12 6.8 ±0.3 37 600 200 1000 300
24 8.4 ±0.5 61 720 240 1000 300
48 12.5 ±0.5 121 1600 520 1000 300
