Features
● Low insertion loss and back reflection loss.
● High Precision of Mechanical Dimensions.
● Compliant with Telcordia GR-326-Core, IEC, TIA.
● RoHS compliant.
● 100% Optic test.
Technical Specification
● Compliance Telcordia GR-326-CORE.
● Compliance IEC 60874-7 (FC Type) Sectional specification.
● Compliance IEC 60874-14 (SC Type) Sectional specification.
● The Reliability and Environment test is based on EIA/TIA455 Standard.
| Adaptor Type | Mode | Core | Housing Color | Dust Cap Color |
| FC-SC Simplex Flange Adaptor | Singlemode | Simplex | Metal | FC : White/Red/Blue/Green/Yellow/Black |

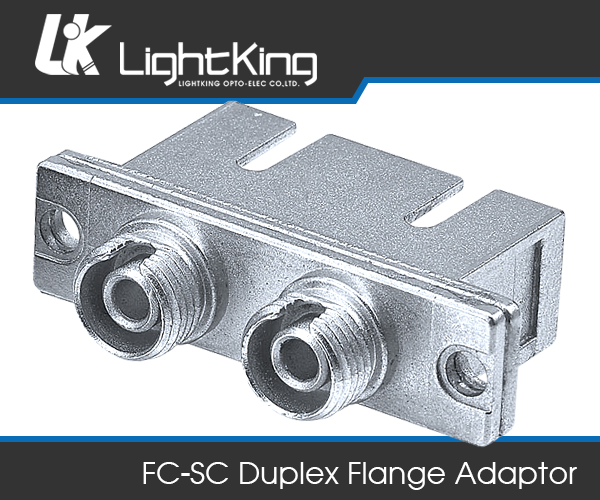

| FC-SC Duplex Flange Adaptor | Multimode | Duplex | Metal | SC : Transparent/Semi-Transparent/Blue/Green/Beige/Black/Aqua/Magenta |
| FC-SC Simplex Square Adaptor | APC | Simplex | Metal | ST : Red/Blue/Green/Yellow/Black |
| FC Metal to SC Plastic Simplex Flange Adaptor | Simplex | Blue/Metal | LC : White/Black/Blue/Green/Aqua/Semi-Transparent | |
| FC-ST Simplex Flange Adaptor | Simplex | Blue/Metal | ||
| FC-ST Simplex Square Adaptor | Simplex | Metal | ||
| FC-ST Type(3/8") Metal Adaptor | Simplex | Metal | ||
| FC-ST D Type(M9) Metal Adaptor | Simplex | Metal | ||
| FC-ST Square Type | Simplex | Metal | ||
| LC-FC Simplex Metal Adaptor | Simplex | Metal | ||
| LC-SC Simplex Plastic Adaptor | Simplex | Blue/Green | ||
| LC-SC Simplex Metal Adaptor | Simplex | Metal | ||
| LC-ST Simplex Metal Adaptor | Simplex | Metal | ||
| SC-ST Simplex Flange Adaptor | Simplex | Blue/Beige | ||
| SC-ST Duplex Flange Adaptor | Duplex | Blue/Beige |
