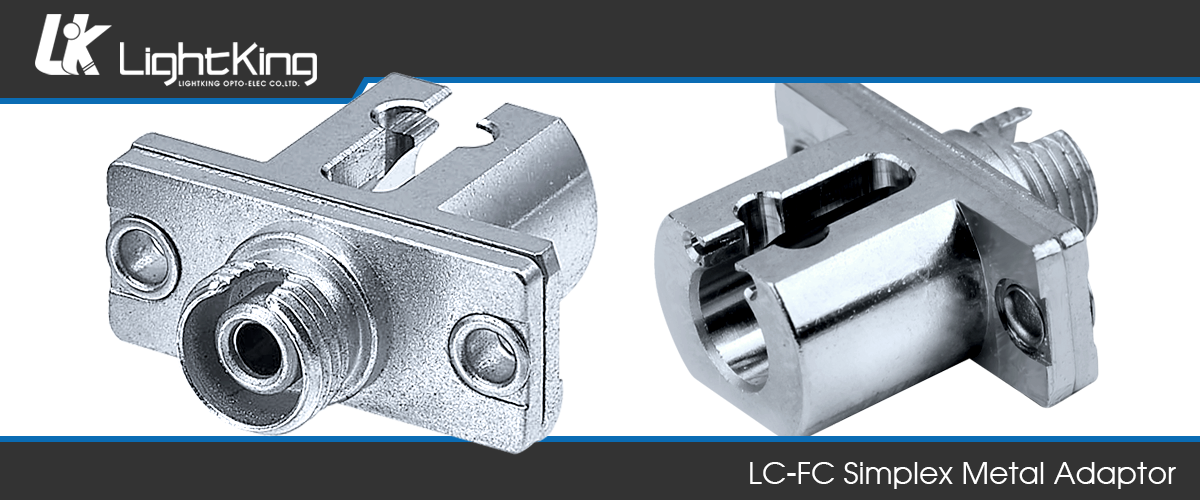

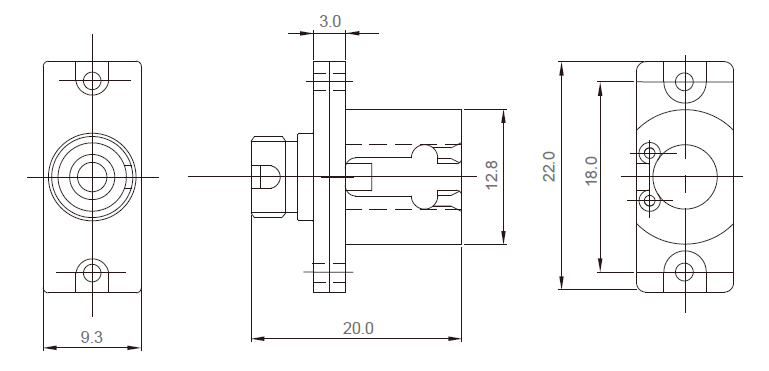

LC-FC Simplex Metal Adaptor

Features
● Low insertion loss and back reflection loss.
● High Precision of Mechanical Dimensions.
● Compliant with Telcordia GR-326-Core, IEC, TIA.
● RoHS compliant.
● 100% Optic test.

Technical Specification
● Compliance Telcordia GR-326-CORE.
● Compliance IEC 61754-20 (LC Type) Sectional specification.
● Compliance IEC 60874-7 (FC Type) Sectional specification.
● Compliance IEC 60874-14 (SC Type) Sectional specification.
● Compliance IEC 60874-10-2B FOC/2,5 (ST Type) Sectional specification.
● The Reliability and Environment test is based on EIA/TIA455 Standard.

Adaptor Type Mode Core Housing Color Dust Cap Color
FC-SC Simplex Flange Adaptor Singlemode Simplex Metal FC : White/Red/Blue/Green/Yellow/Black
FC-SC Duplex Flange Adaptor Multimode Duplex Metal SC : Transparent/Semi-Transparent/Blue/Green/Beige/Black/Aqua/Magenta
FC-SC Simplex Square Adaptor APC Simplex Metal ST : Red/Blue/Green/Yellow/Black
FC Metal to SC Plastic Simplex Flange Adaptor   Simplex Blue/Metal LC : White/Black/Blue/Green/Aqua/Semi-Transparent
FC-ST Simplex Flange Adaptor   Simplex Blue/Metal
FC-ST Simplex Square Adaptor   Simplex Metal
FC-ST Type(3/8") Metal Adaptor   Simplex Metal
FC-ST D Type(M9) Metal Adaptor   Simplex Metal
FC-ST Square Type   Simplex Metal
LC-FC Simplex Metal Adaptor   Simplex Metal
LC-SC Simplex Plastic Adaptor   Simplex Blue/Green
LC-SC Simplex Metal Adaptor   Simplex Metal
LC-ST Simplex Metal Adaptor   Simplex Metal
SC-ST Simplex Flange Adaptor   Simplex Blue/Beige
SC-ST Duplex Flange Adaptor   Duplex Blue/Beige
