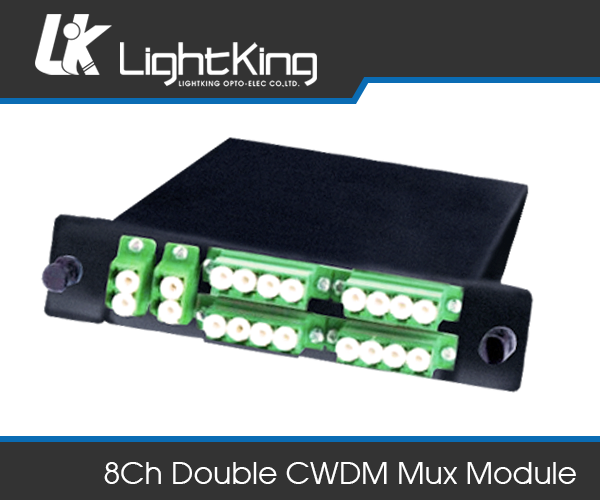

8Ch Double CWDM Mux Module

Features
● Low Insertion Loss
● High Isolation
● Low PDL
● Compact Design
● High Reliability and Stability


Application
● CWDM system
● CATV network

Paramenter Unit SPEC
Operating Temperature   nm 1260-1620
Channel Center Wavelength   nm 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611
Channel Spacing   nm 20
Channel Clear Passband   nm ITU ±6.5
Number of Channel     8
Insertion Loss Max dB 3.0
Upgrade Max dB 2.5
Passband Ripple Max dB 0.5
Adjacent Channel Isolation Min dB 28
Non-Adjacent Channel Isolation Min dB 45
PDL Max dB 0.1
Passband Ripple Max dB 0.5
Adjactent Channel Isolation Min dB 28
Non-Adjacent Channel Isolation Min dB 45
PDK Max dB 0.1
Return Loss Min dB 45
Directivily Min dB 50
Fiber Type Min m SMF-28e+ or equitability 0.9mm
Fiber Length Min m 1.0
Power Handling Max mw 500
Operating Temperature Max °C -5°C ~ +75°C
Storage Temperature Max °C -40°C ~ +85°C
Connector     LC / APC
Package Dimension   mm 1U LGX (Aluminum-White coating)
Note: Values referenced without connectors and insertion loss for a connector-pair is 0.20dB(typ.) and 0.30db(max.)
