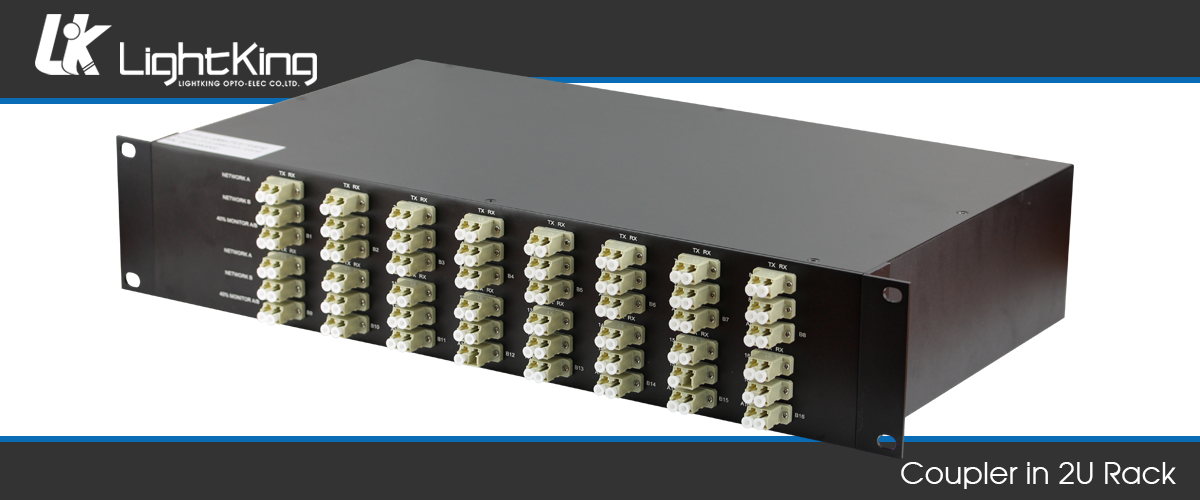

32pcs *1x2(60/40%) OM1 Coupler W/LC Connector in 2U Rack

(P/N: DF-2U-32MM-CPLR-1X2-60:40)

Features:
* Low excess loss
* Low PDL
* High stability and reliability
* Various coupling ratio
Applications:
* CATV
* Optical communication systems
* Testing instruments* FTTH
* FTTB
Coupler Specifications:
1. Bi-directional
2. Wavelength@850 &1310nm
3. Fiber: Multimode OM1 62.5/125um
4. Test results should be after the installation on each box.

Testing Light Source-MM VCSEL
Parameter Insertion Loss（dB）
Insertion loss（dB) 60/40 ≤3.40/≤5.20
Directivity（dB） ≥35
Operating temperature（℃） -40 ～ ＋85
Operating Humidity : 10～95%RH
Cable type : 0.9mm pigtail
Connectors type LC/PC

Rack Specifications:

1U-

Case Dimension (mm) (L×W×H) 483x250x90
Case Color Black
Adaptor type LC/PC Duplex



Figure1 : Front

Figure2 : Top​
