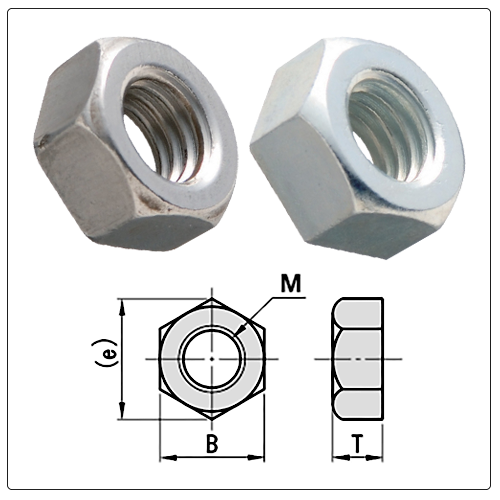

M B (e) T Package
2 4 4.6 1.6 1000
2.5 5 5.8 2
2.6 5 5.8 2
3 5.5 6.4 2.4
4 7 8.1 3.2
5 8 9.2 4
6 10 11.5 5
8 13 15 6.5 500
10 17 19.6 8 200

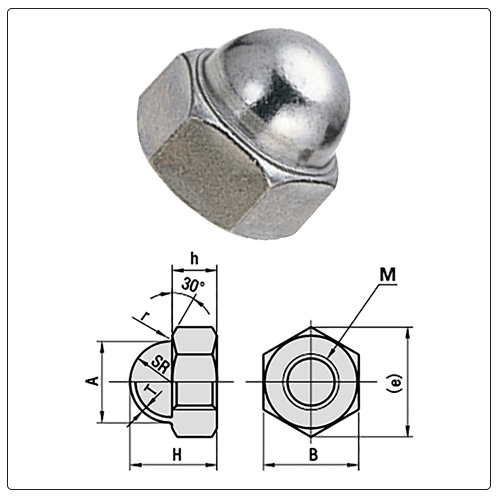

M H h B A (min.) T (min.) (e) r
3 5.0 2.4 5.5 4.6 0.3 6.1 0.5
4 6.2 3.2 7 5.6 0.6 8.1
5 7.5 4 8 6.6 9.2
6 9.5 5 10 8.5 11.5
8 12.5 6.5 13 11.5 0.8 15
10 15.5 8 17 14.5 1.0 19.6
12 18.5 10 19 16.5 1.2 21.9 1.0
16 24 13 24 21.5 1.6 27.7
20 29 16 30 26.5 34.6
24 35.5 19 36 32.5 2.0 41.6
