Features
● Customized Spec
● High reliability and low insertion loss
● Passed GR-1209 & 1221-CORE Test

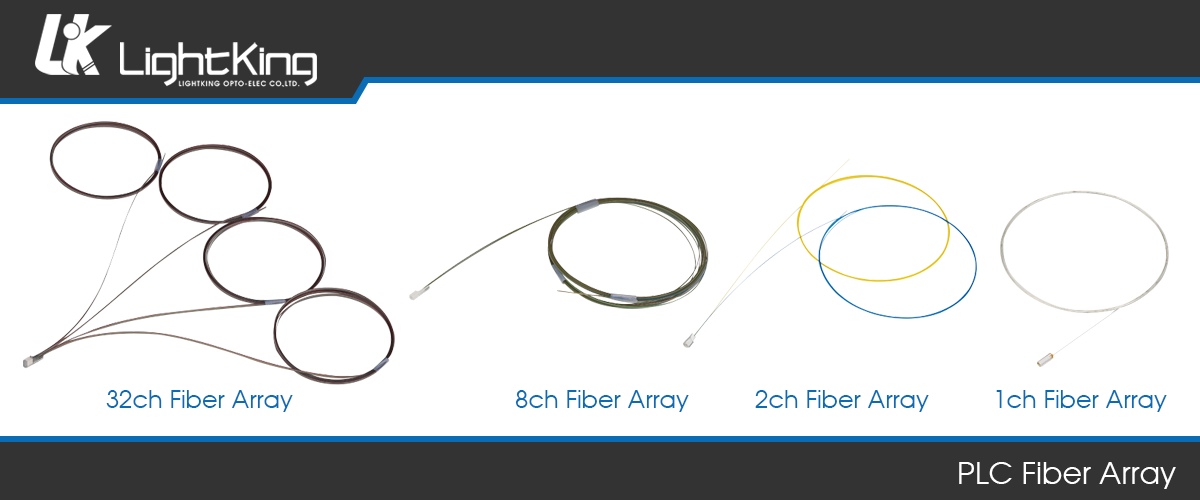

PLC Fiber Array
| Array Type | Spacing | W x L x T(Substrate) | W x L x T(Lid) | Fiber Type | |
| 1ch | ------ | 2.5 x 8.0 x 2.5mm | ------ | G657A | Single x 1 |
| 2ch | ------ | 2.5 x 8.0 x 2.5mm | ------ | G657A | Single x 1 |
| 4ch | 250 um | 2.5 x 10 x 1.5 mm | 2.35 x 4.5 x 1.0mm | G657A | 4-Ribbon x 1 |
| 8ch | 250 um | 2.5 x 12 x 1.5mm | 2.35 x 4.5 x 1.0mm | G657A | 4-Ribbon x 2 |
| 8ch | 127 um | 1.5 x 12 x 1.5mm | 2.35 x 4.5 x 1.0mm | G657A | 4-Ribbon x 2 |
| 16ch | 127 um | 3.3 x 12 x 1.5mm | 3.0 x 4.5 x 1.0mm | G657A | 8-Ribbon x 2 |
| 32ch | 127 um | 5.7 x 12 x 1.5 mm | 5.5 x 4.5 x 1.0mm | G657A | 8-Ribbon x 4 |
| 64ch | 12 7um | 11.0 x 12 x 1.5 mm | 10.7 x 4.5 x 1.0mm | G657A | 8-Ribbon x 8 |
