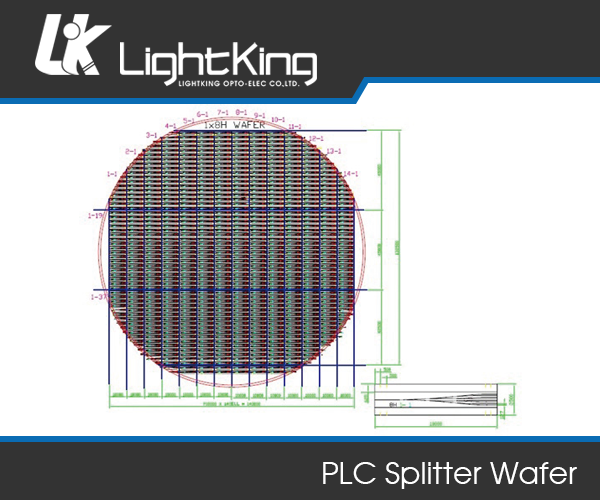

PLC Splitter Wafer

Features
● Low Insertion Loss
● Low PDL
● Low uniformity
● Wide range of operatingwavelengths

Application
● FTTH . FTTB . FTTC
● CATV networks
● Fiber optic equipments & systems
● PON system fiber

Spec of Wafer(1xNch_V type)
Item Pitch Dimension(mm) Effective Flgures(pcs) Premium Grade Chip(P) Yield(%)
P Grade		 Effective
 Figures x
 Yield
Optical Spec (dB)
1x2 Channel
PLC Splitter Wafer		 Full(250um) W(±0.1) 2 664 IL 3.5 ≥85 AVG.≥564
L(±0.2) 9 UNI 0.3
H(±0.3) 2.5 PDL 0.1
1x4 Channel
PLC Splitter Wafer		 Full(250um) W(±0.1) 2.5 664 IL 6.8 ≥85 AVG.≥564
L(±0.2) 9.5 UNI 0.5
H(±0.3) 2.5 PDL 0.1
1x8 Channel
PLC Splitter Wafer		 Full(250um) W(±0.1) 2.5 442 IL 9.8 ≥85 AVG.≥358
L(±0.2) 11.45 UNI 0.6
H(±0.3) 2.5 PDL 0.12
1x8 Channel
PLC Splitter Wafer		 Half(127um) W(±0.1) 2.5 616 IL 9.8 ≥85 AVG.≥523
L(±0.2) 10 UNI 0.6
H(±0.3) 2.5 PDL 0.12
1x16 Channel
PLC Splitter Wafer		 Half(127um) W(±0.1) 2.8 338 IL 12.8 ≥85 AVG.≥287
L(±0.2) 14 UNI 0.8
H(±0.3) 2.5 PDL 0.15
1x32 Channel
PLC Splitter Wafer		 Half(127um) W(±0.1) 4.7 156 IL 16.2 ≥85 AVG.≥124
L(±0.2) 18.5 UNI 0.8
H(±0.3) 2.5 PDL 0.15
1x64 Channel
PLC Splitter Wafer		 Half(127um) W(±0.1) 9.5 62 IL 19.5 ≥85 AVG.≥49
L(±0.2) 25.5 UNI 1.2
H(±0.3) 2.5 PDL 0.2
Note: There will be additional 0.15dB(Insertion Loss)Averagely after Assembly process.



Spec of Wafer(2xNch_V type)
Item Pitch Dimension(mm) Effective Flgures(pcs) Premium Grade Chip(P) Yield(%)
P Grade		 Effective
 Figures x
 Yield
Optical Spec (dB)
2x2 Channel
PLC Splitter Wafer		 Full(250um) W(±0.1) 2.1 522 IL 3.7 ≥80 AVG.≥418
L(±0.2) 12.8 UNI 0.8
H(±0.3) 2.5 PDL 0.2
2x4 Channel
PLC Splitter Wafer		 Full(250um) W(±0.1) 2.1 400 IL 7 ≥80 AVG.≥320
L(±0.2) 16.1 UNI 1
H(±0.3) 2.5 PDL 0.2
2x8 Channel
PLC Splitter Wafer		 Full(127um) W(±0.1) 2.1 400 IL 10.2 ≥80 AVG.≥320
L(±0.2) 16.2 UNI 0.6
H(±0.3) 2.5 PDL 0.2
2x16 Channel
PLC Splitter Wafer		 Half(127um) W(±0.1) 2.8 243 IL 13.5 ≥75 AVG.≥182
L(±0.2) 19.5 UNI 1
H(±0.3) 2.5 PDL 0.25
2x32 Channel
PLC Splitter Wafer		 Half(127um) W(±0.1) 4.85 112 IL 16.8 ≥75 AVG.≥84
L(±0.2) 23.1 UNI 1.2
H(±0.3) 2.5 PDL 0.3
2x64 Channel
PLC Splitter Wafer		 Half(127um) W(±0.1) 8.85 48 IL 20 ≥75 AVG.≥36
L(±0.2) 26.8 UNI 2
H(±0.3) 2.5 PDL 0.3
Note: There will be additional 0.15dB(Insertion Loss)Averagely after Assembly process.
