Application
1. Used in indoor cabling.
2. Used as access building cable.
3. Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames.

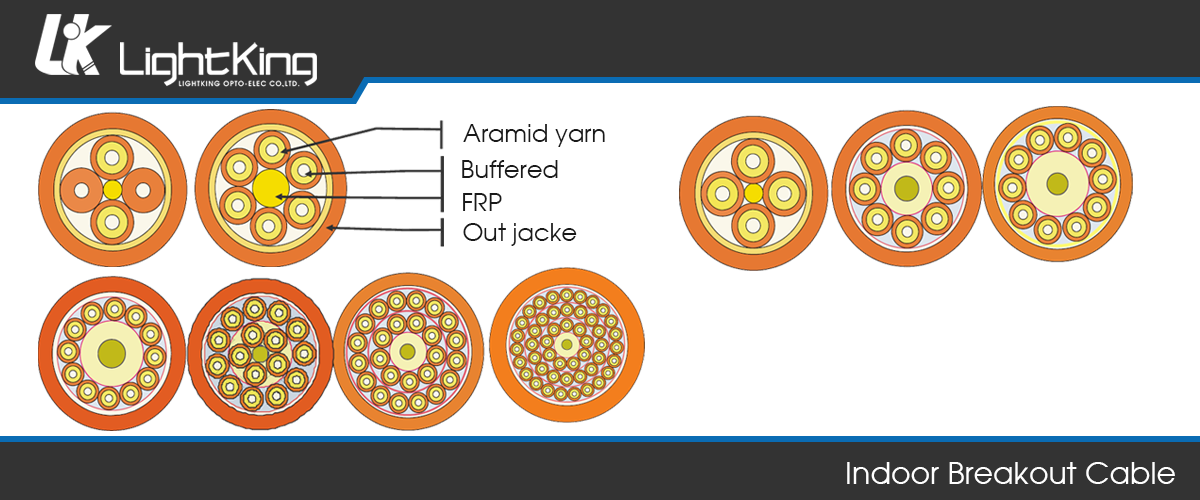

Indoor Breakout Cable
Properties
1 Good mechanical and environmental characteristics.
2. Flame retardant characteristics meet the requirements of relevant standards.
3. The mechanical characteristics of jacket meet the requirements of relevant standards.
4. Soft, flexible, easy to lay and splice, and with big capacity data transmission.
5. Meet various requirements of market and clients.
6. Each individual unit cable consists of fiber and aramid yarn as strength member, high strength, good bending property, without gel inside.
7. Fiber count is 2-48 cores.
8. Color of out jacket varies according to the type of fibers inside. can also be other color upon request.
9. LSZH material for out jacket, can also be other materials upon request.
Application: | ||||||
Fiber account | OD(㎜) | Nominal Weight(㎏/㎞) | Max.Tension (N) | Max. Crushing Resistance (N/100 ) | ||
Short-term | Long-term | Short-term | Long-term | |||
2 | 7.5 ±0.5 | 50 | 400 | 120 | 1000 | 300 |
4 | 7.5 ±0.5 | 51 | 400 | 120 | 1000 | 300 |
6 | 9.0 ±0.5 | 68 | 700 | 200 | 1000 | 300 |
8 | 10.5 ±0.5 | 88 | 800 | 250 | 1000 | 300 |
10 | 11.5 ±0.5 | 102 | 1000 | 300 | 1000 | 300 |
12 | 12.5 ±0.5 | 128 | 1200 | 400 | 1000 | 300 |
16 | 13.0 ±0.5 | 168 | 1200 | 400 | 1000 | 300 |
24 | 15.5 ±0.5 | 198 | 1200 | 400 | 1000 | 300 |
48 | 20 ±0.5 | 246 | 1800 | 600 | 1000 | 300 |
