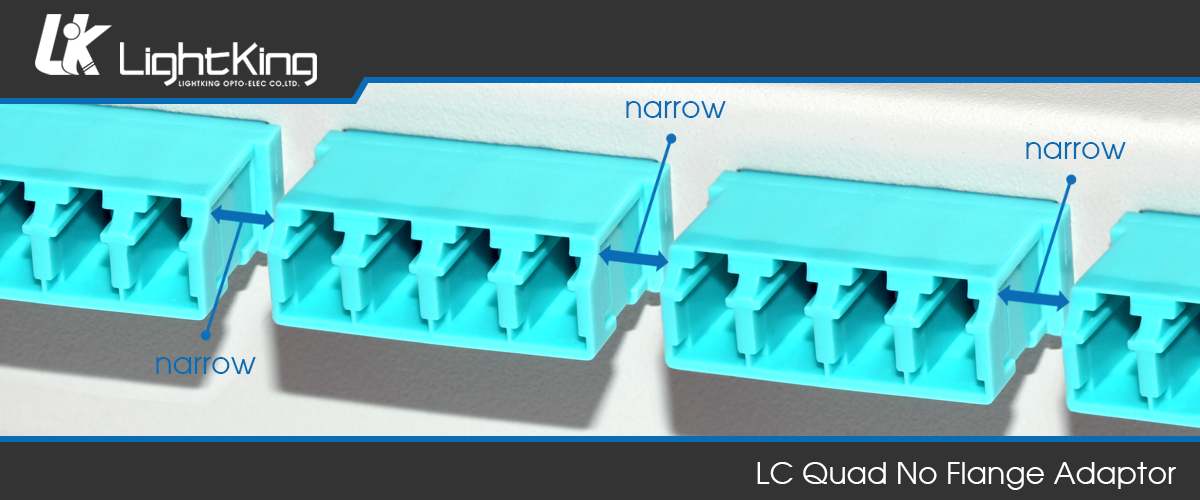

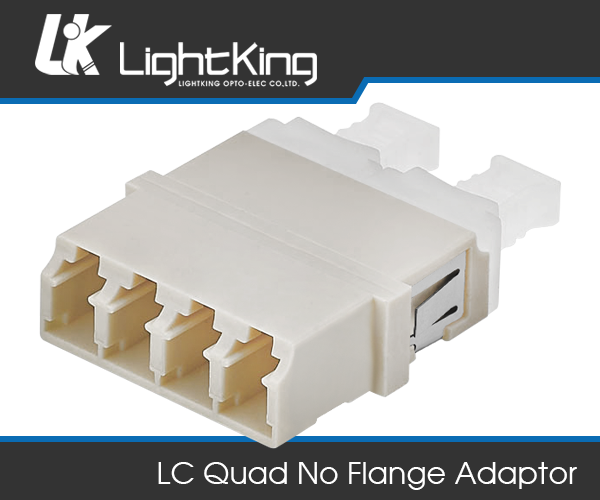

LC Quad No Flange Adaptor

Features
● Low insertion loss and back reflection loss.
● High Precision of Mechanical Dimensions.
● Compliant with Telcordia GR-326-Core, IEC, TIA.
● RoHS compliant.
● 100% Optic test.

Technical Specification
● Compliance Telcordia GR-326-CORE.
● Compliance IEC 61754-20 Sectional specification.
● The Reliability and Environment test is based on EIA/TIA455 Standard.

Adaptor Type Mode Core    Housing Color Dust Cap Type Dust Cap Color Housing Material
Flange type with metal clip Single Mode PC Simplex Blue Round Type (SX) White Plastic
Flange type with plastic clip Multmode Duplex Green Square Type (SX) Black Metal
No Flange type with metal clip Singlemode APC Quad Beige Full-Cover (SX) Blue
No Flange type with plastic clip     Black Full-Cover (DX) Green
Inner Shutter     Aqua   Aqua
Outer Shutter     Magenta   Semi-Transparent
Low Profile     Matel type
Pin Adaptor
SC FootPrint(one body type)
