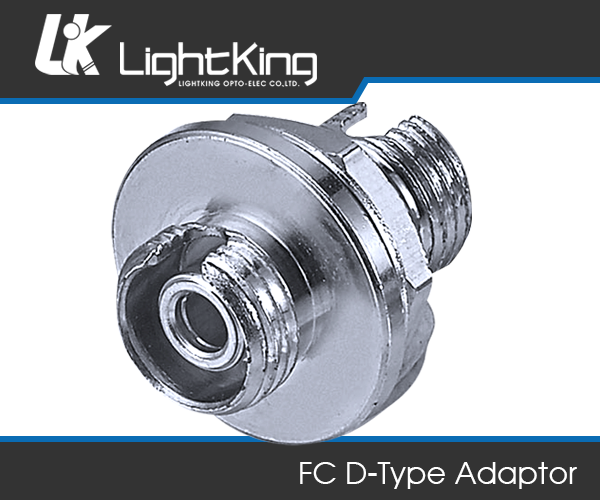

FC D-Type Adaptor

Features
● Low insertion loss and back reflection loss.
● High Precision of Mechanical Dimensions.
● Compliant with Telcordia GR-326-Core, IEC, TIA.
● RoHS compliant.
● 100% Optic test.
Technical Specification
● Compliance Telcordia GR-326-CORE.
● Compliance IEC 60874-7 (1993) sectional specification.
● The Reliability and Environment test is based on EIA/TIA455 Standard.

Adaptor Type Mode Core Housing Color Dust Cap Color Housing Material
Flange Singlemode Simplex Blue White Plastic
D-Type(M8 to M8) Multimode Duplex Metal type Red Metal
D-Type(M8 to M9) APC     Blue
D-D Type(M8 to M8)       Green
D-D Type(M8 to M9)       Yellow
Square       Black
Oval
