Features
● Loopback modules are designed for testing, engineering stage of boards or other equipment.
● Low insertion loss and back reflection loss.
● Compliant with Telcordia GR-326-Core, IEC, TIA.
● RoHS compliant.
● 100% Optic test.

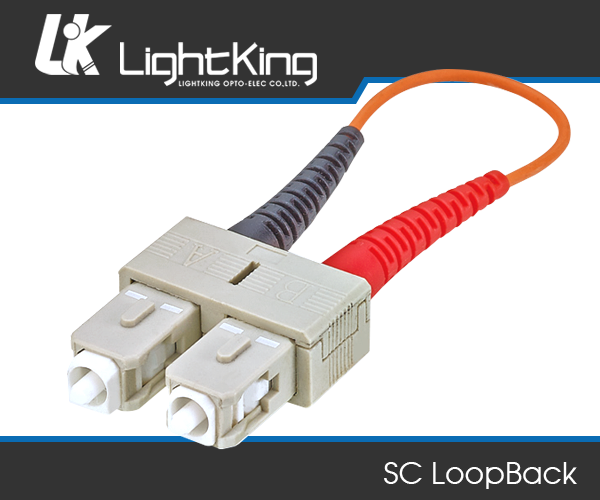

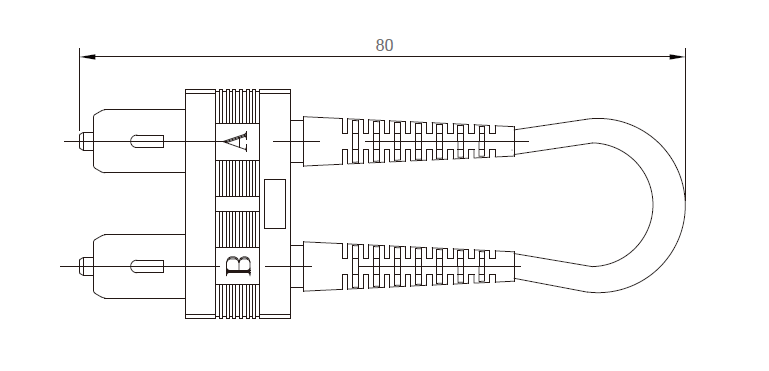

SC LoopBack
ITEM | SPECIFICATION | ||
SM 9/125 | MM 50/125 or 62.5/125 |
||
PC | APC | ||
ROHS Compliance/Meet UL & Telecordia Testing Requirements | |||
HOUSING MATERIAL | Plastic with UL approved | ||
I.L. | 0.3 dB Max. | 0.3 dB Max. | |
R.L. | ≥50dB | ≥65dB | ------- |
OPERATING TEMPERATURE(°C) | -20°C ~ +75°C |
