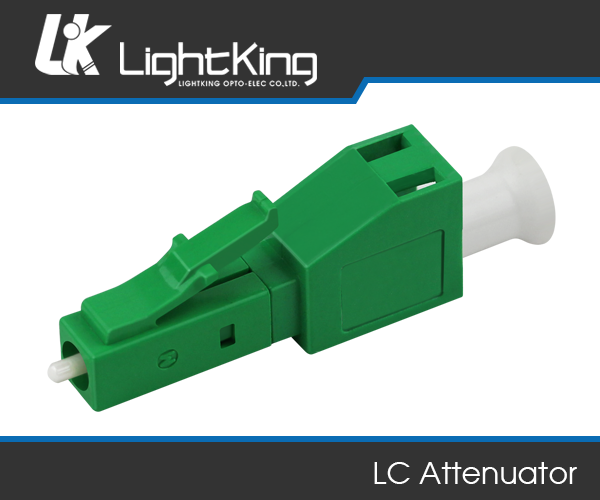

LC Attenuator

Features
● Low insertion loss and back reflection loss.
● High Precision of Mechanical Dimensions.
● Compliant with Telcordia GR-326-Core, IEC, TIA.
● RoHS compliant.
● 100% Optic test.

ITEM SPECIFICATION
TYPE Fixed type attenuator Male to Female
ATTENUATION RANGE 1-5 dB ± 0.5 dB
6-10 dB ± 1.0 dB
11-20 dB ± 10%
RETUN LOSS PC>50dB, UPC>55dB, APC>65dB
OPERATIONAL WAVELENGTHS 1310nm or 1550nm or 1310nm and 1550nm
OPERATING TEMPERATURE(°C) -20°C ~ +75°C
