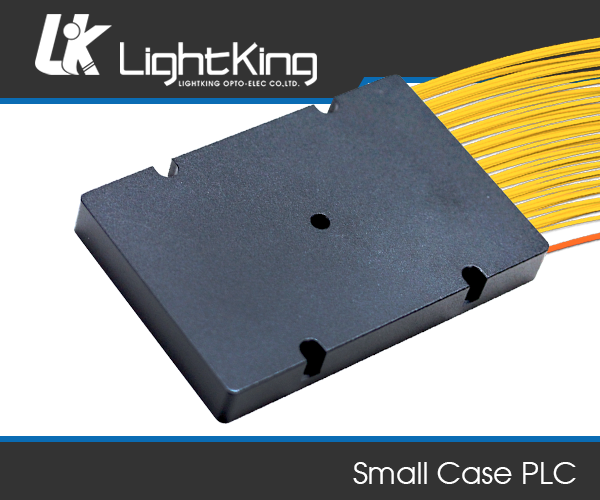

Small Case PLC

Features
Very low insertion loss
Wide bandwidth (1260-1650 nm)
▶ Polarization independent
▶ Excellent channel uniformity
▶ Compact size
▶ High reliability and stability Comply with Telcordia GR-1209 and GR-1221 requirements



1 Fiber G657A
2 Operating Wavelength(nm) 1260~1650nm
3 Insertion Loss(dB) ≦16.8dB ( W/Connector )
4 Uniformity(dB) ≦1.6dB
5 Return Loss(dB) ≧55dB
6 PDL(dB) ≧0.3dB
7 Directivity(dB) ≧55dB
8 Connector Type Input - LC/APC Simplex adaptor green
Output - 2.0mm cable LSZH yellow
9 Cable Type Input- 2,0mm cable LSZH orange, output- 2.0mm cable LSZH yellow
10 Case Metal(CNC) - Black
11 Operating Temperature(°C) -40°C ~ +85°C
