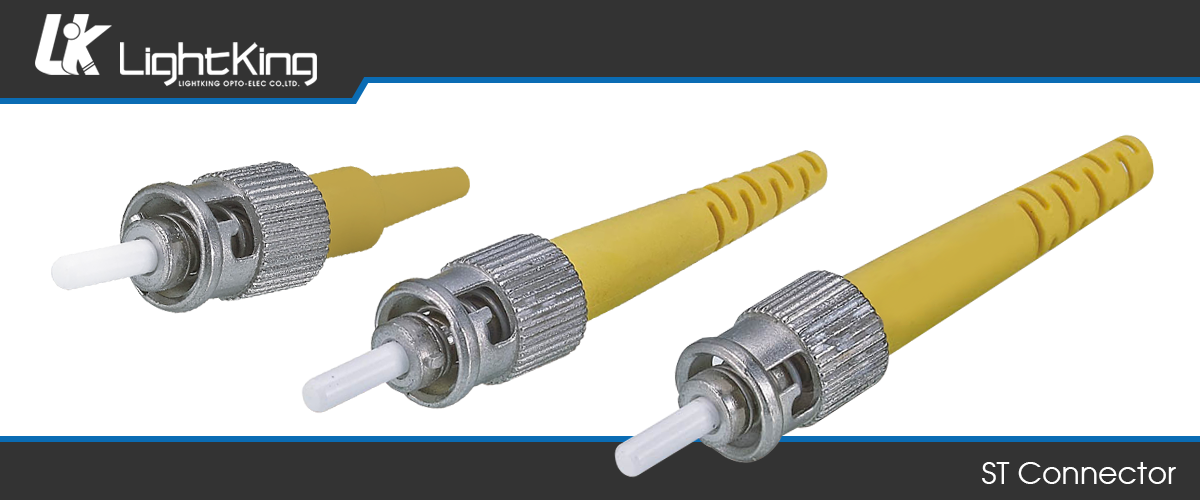

ST Connector

Features
● Low insertion loss and back reflection loss.
● High Precision of Mechanical Dimensions.
● Compliant with Telcordia GR-326-Core, IEC, TIA.
● RoHS compliant.
● 100% Optic test.


Technical Specification
● Compliance Telcordia GR-326-CORE.
● Compliance 60874-10-2 sectional specification.
● The Reliability and Environment test is based on EIA/TIA455 Standard.

Dust Cap Type Dust Cap Color Connector Type Connector Color Boot Type Boot Color Crimping Type
Standard Transparent 0.9/2.0/3.0mm SX (Zinc Flange) Metal Standard 0.9mm Blue Standard ψ2.0
DustCap and Chain Blue 0.9/2.0/3.0mm SX (Brass-Ni Flange) Plastic (Black) Soft 0.9mm Green Standard ψ2.8
  Green     Soft 2.0mm Black Standard ψ3.0
  Black     Soft 3.0mm White Teeth Crimp ψ1.7
  White       Gray
  Gray       Red
  Red       Brown
  Brown       Orange
  Orange       Pink
  Pink       Yellow
  Yellow       Aqua
  Aqua       Magenta
  Magenta       Beige
