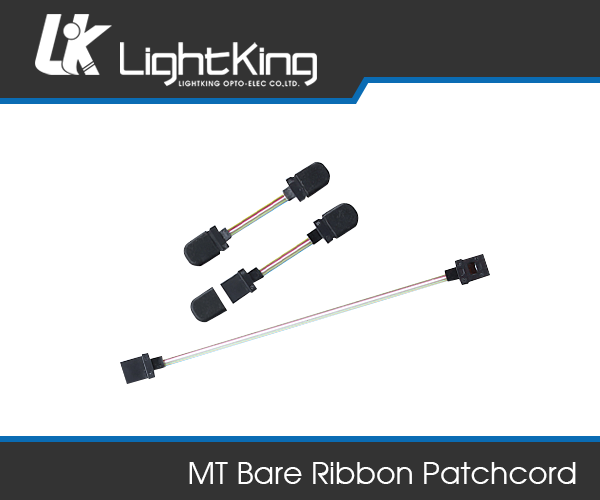

MT Bare Ribbon PatchCord

Features
• 8-12 core fiber available
• Cross or Straight Connection
• Small volume, easy management
• 100%interferemeter testing
• Low insertion loss and return loss
• Customized connection method as QSFP requirements
• Customized ribbon fiber length

Applications
• QSFP devices
• Telecom system
• Cabling system
• High Density optical laser

Specifications
Item  SM  MM
Insertion loss ≤0.30dB /≤0.75 dB ≤0.30dB /≤0.75 dB
Return loss >65dB >45dB
Fiber diameter 9/125um 50/125um、62.5/125um、OM3、OM4
Insert- pull test  500times<0.5 dB
Operation temperature -40℃~+80℃
