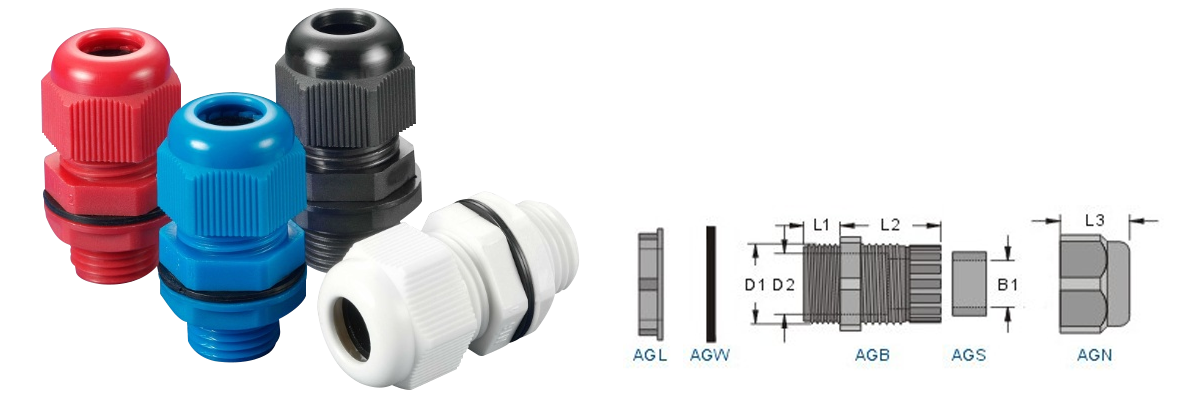

Cable Gland

  D1 D2 B1 L1 L2 L3 Cable Range Packing
PF 1/4" 14 8.2 6.5 8.0 19.6 13.2 3~6.5 50pcs
PF 3/8" 17 10.8 10.5 14.7 23.4 16.9 5~10
PF 1/2" 21 15.0 14.0 12.9 28.5 18.5 10~14
PF 5/8" 23 15.0 14.0 12.9 28.5 18.5 10~14
PF 3/4" 27 18.5 18.4 14.7 29.4 22.3 13~18
PF 1" 34 26.0 25.0 14.7 34.5 25.7 18~25 25pcs
PF 1  1/2" 48 42.0 40.0 17.8 44.2 31.3 30~38 10pcs
PF 2 61 55.0 44.0 18.5 44.6 32.7 34~44

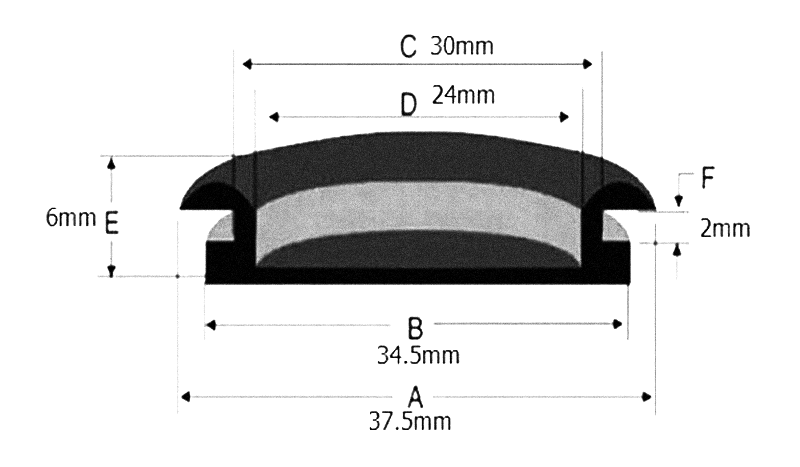

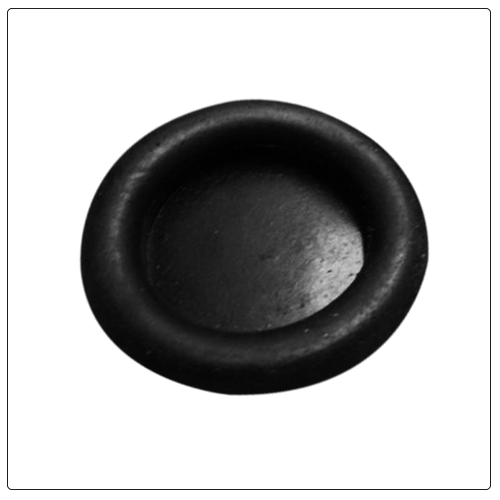

Coil protection cover
